Routing Multicast Traffic

371

Router4 has a network that does not have members, it does have an interface
that does, so it will not send a prune message.

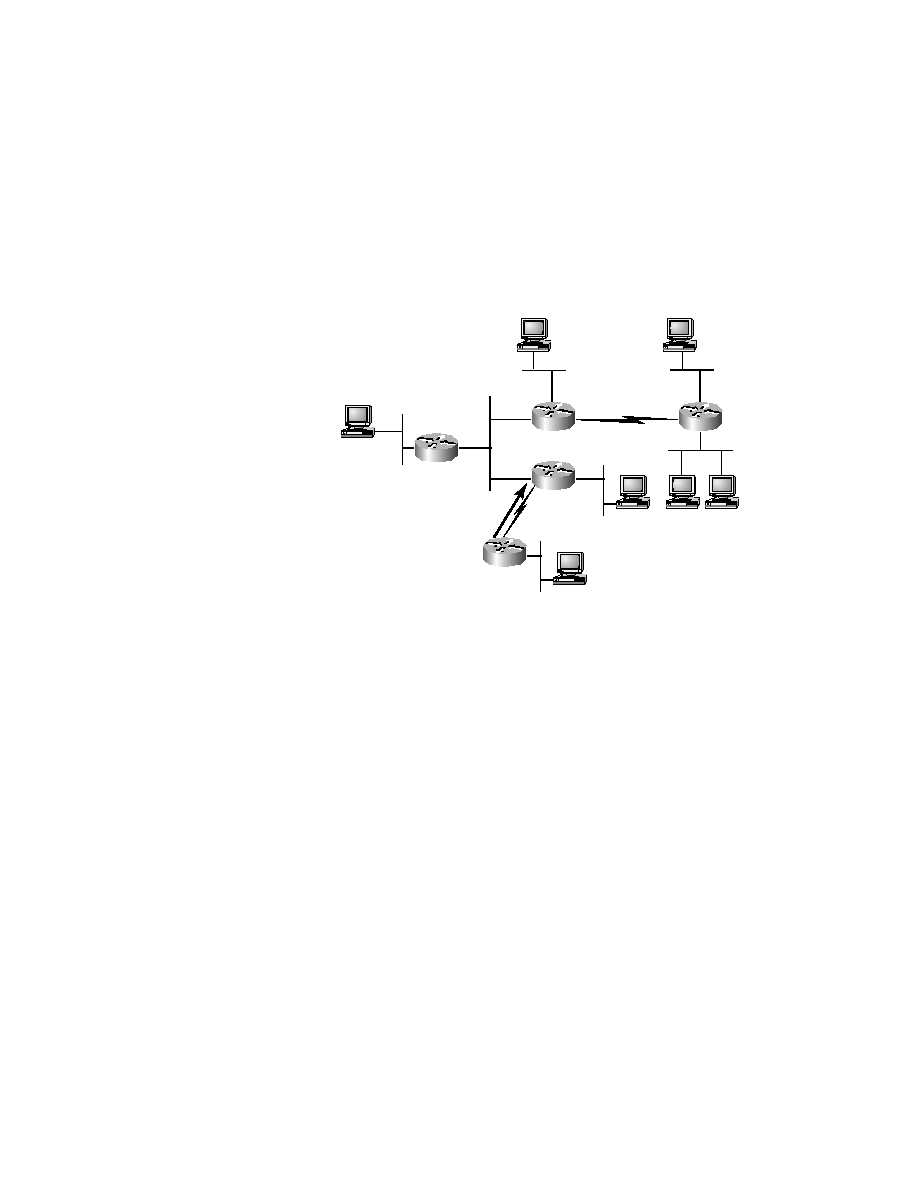

F I G U R E 9 . 1 8

PIM DM pruning

There are four criteria that merit a prune message being sent by a router:

The incoming interface fails the RPF check.

There are no directly connected active group members and no PIM
neighbors (considered a leaf router because it has no downstream PIM
neighbors).

A point-to-point non-leaf router receives a prune request from a
neighbor.

A LAN non-leaf router receives a prune request from another router
and no other router on the segment overrides the prune request.

If any of these criteria are met, a prune request is sent to the PIM neighbor
and the SPT is pruned back.
