HSRP with Multiple Destinations
319
Hellotime 3 holdtime 10
Next hello sent in 00:00:01.172
Hot standby IP address is 10.1.0.200 configured
Active router is 10.1.0.1 expires in 00:00:08
Standby router is local
Standby virtual mac address is 0000.0c07.ac01
Tracking interface states for 1 interface, 0 up:
Down Serial0 Priority decrement: 50
RouterB#
HSRP with Multiple Destinations
H
SRP has provisions for more complex scenarios involving multiple
routers and multiple destinations. Consider three routers on a LAN segment
providing connectivity to two different locations, as shown in Figure 8.4.

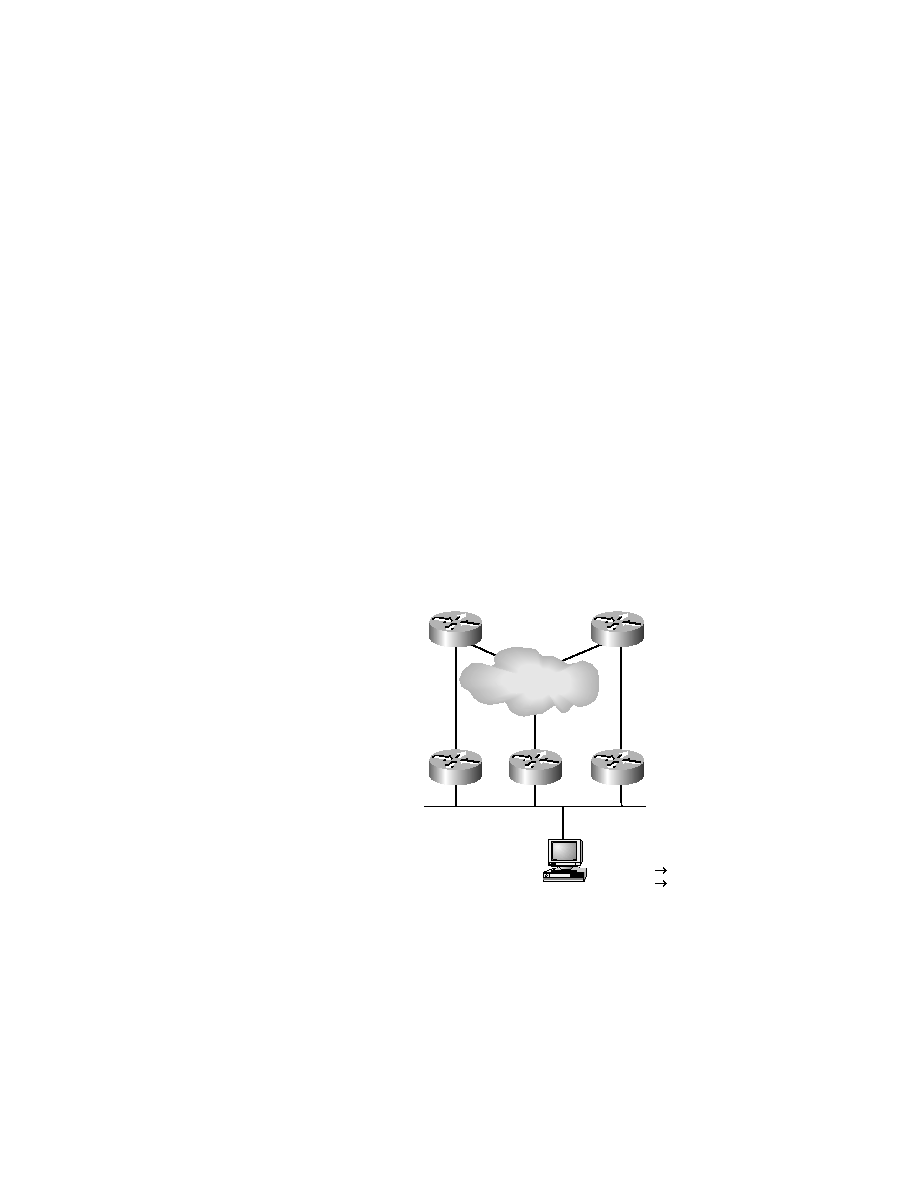

F I G U R E 8 . 4
HSRP with multiple destinations
As you can see in this figure, Router A is directly connected and the pri-
mary link to the 22.2.0.0/16 network, and Router C is directly connected
Host C
IP Address 10.1.0.99
22.2.0.0/16 10.1.0.200
33.3.0.0/16 10.1.0.201
10.1.0.1/16
22.2.2.2/16
33.3.3.3/16
10.1.0.3/16
10.1.0.2/16
Router C
Router E
Router A
Router D
Router B
Dial-Up
